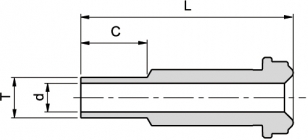

GM-W -Gland Male without Shoulder

현재위치: 홈->제품소개-> HTC 고청정 High Tech Components Fittings > GL-W



GM-W -Gland Male without Shoulder

Part
Description		 L d C T Tube OD
in mm in mm in mm in mm
V-GM-1/4-W-H 1.31 33.30 0.12 3.00 0.41 10.40 1/4
V-GM-1/4-W-E 1.31 33.30 0.12 3.00 0.41 10.40 1/4
V-GM-1/4-W-U 1.31 33.30 0.12 3.00 0.41 10.40 1/4
V-GM-3/8-W-E 1.50 38.10 0.28 7.10 0.41 10.40 3/8
V-GM-1/2-W-H 1.50 38.10 0.40 10.20 0.50 12.70 1/2
